LEGIDATECH, a Chinese LED display manufacturer & supplier with 15 years of experience in the production and sales of all kinds of stage LED displays/ indoor LED panel/outdoor digital screen.

Led Video Wall Screen IP65 Outdoor Advertising Led Display EDS-Series 1

Led Video Wall Screen IP65 Outdoor Advertising Led Display EDS-Series 2

Led Video Wall Screen IP65 Outdoor Advertising Led Display EDS-Series 3

Led Video Wall Screen IP65 Outdoor Advertising Led Display EDS-Series 4

Led Video Wall Screen IP65 Outdoor Advertising Led Display EDS-Series 5

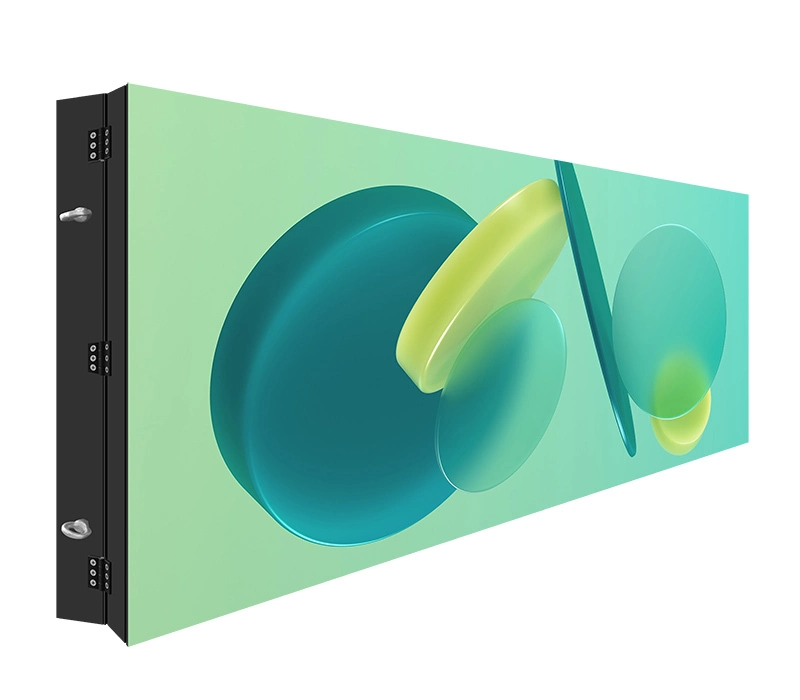

Led Video Wall Screen IP65 Outdoor Advertising Led Display EDS-Series

The EDS Series is a front accessible LED display designed for easy maintenance. With front accessible modules, power supplies, and cables, this display offers a convenient and cost-effective solution for users.

Value	P2.5	P3
Pixel Pitch	2.5 mm	3.076 mm
Brightness	5000 nits	5000 nits
Pixel Configuration	SMD	SMD

Inquiry

Write a Review

product description

Fully Front Accessible: All the accessories including module, power and cables can be removed from front easily, reducing operating cost.

0EDS Series (6) (2)

7修

10 (16)

Detailed description

1. Fully Front Accessible

All the accessories including module, power and cables can be removed from front easily, reducing operating cost.

2. Cabinet Structure

Its innovative cabinet structure allows for quick and convenient access to the internal components, making maintenance tasks simple and efficient.

3. IP 65 Weather Rating

Special treatment of protection rating with IP65, fully waterproof panel.

4. High Definition Performance

P3, P4, P5 are recommended

5. Double Sides Option

With the double sides option, users can access the display from both sides, simplifying maintenance and ensuring maximum visibility for the audience.

6. Wide Applications

There will be single front open and double-sided for options. Single one mainly for wall mounted, and double sided is best for billboard on poles.

7. Super Energy-Saving LED Billboard

It is part of the Super Energy-Saving LED Billboard line, offering a cost-effective and environmentally friendly solution for high-quality outdoor advertising.

8. Wide Viewing Angle

Immersive restoration experience, always enjoy the visual feast.

9. 1920Hz High Refresh Rate

With a high refresh rate of 1920Hz, it provides smooth and seamless visuals for viewers.

11. High Grey Scale

The EDS Series Front Accessible LED Display is designed for easy maintenance, with high grey scale allowing for clear and detailed images. This feature ensures that the display can be easily serviced and maintained without compromising on visual quality.

12. Plywood Case

The packaging is made of plywood case, and the delivery time guarantees the quality of the goods

Specification

Value	P2.5	P3	P4	P5
Pixel Pitch	2.5 mm	3.076 mm	4 mm	5 mm
Brightness	5000 nits	5000 nits	5000 nits	5000 nits
Pixel Configuration	SMD	SMD	SMD	SMD
Gray Scale	65536	65536	65536	65536
Refresh Rate	≥ 1920Hz	≥ 1920Hz	≥ 1920Hz	≥ 1920Hz
Pixel Matrix Per Panel	384×384	312×312	240×240	192×192
Pixel Matrix Per Sq.M	160,000	105,625	62,500	40,000
Viewing Angle (H/V)	140/140 deg.	140/140 deg.	140/140 deg.	140/140 deg.
Power Consumption (Max/Avg)	720/300	720/300	720/300	720/300
IP Rate	IP65	IP65	IP65	IP65
Input Voltage (AC)	100 ~ 240	100 ~ 240	100 ~ 240	100 ~ 240
Panel Size (W×H×D)	Customized	Customized	Customized	Customized
Operating Temperature	-20 ~ +60°C	-20 ~ +60°C	-20 ~ +60°C	-20 ~ +60°C

Value	P6	P8	P10
Pixel Pitch	6.667 mm	8 mm	10 mm
Brightness	6000 nits	6000 nits	6000 nits
Pixel Configuration	SMD	SMD	SMD
Gray Scale	65536	65536	65536
Refresh Rate	≥ 1920Hz	≥ 1920Hz	≥ 1920Hz
Pixel Matrix Per Panel	144×144	120×120	96×96
Pixel Matrix Per Sq.M	22,498	15,625	10,000
Viewing Angle (H/V)	140/140 deg.	140/140 deg.	140/140 deg.
Power Consumption (Max/Avg)	720/300	720/300	720/300
IP Rate	IP65	IP65	IP65
Input Voltage (AC)	100 ~ 240	100 ~ 240	100 ~ 240
Panel Size (W×H×D)	Customized	Customized	Customized
Operating Temperature	-20 ~ +60°C	-20 ~ +60°C	-20 ~ +60°C
